ASTM D4956 Type XI Compliant DG Diamond Grade Reflective Sheeting With Pressure-sensitive Adhesive for Highway Signs

Name: ASTM D4956 Type XI Compliant DG Diamond Grade Reflective Sheeting With Pressure-sensitive Adhesive for Highway Signs
Brand: Anhui Lu Zheng Tong New Material Technology Co., Ltd.
SKU: LZT9800
Availability: InStock

اسم العلامة التجارية:	LU
رقم الطراز:	LZT9800
الـ MOQ:	1 رول
السعر:	قابل للتفاوض
شروط الدفع:	خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون
قدرة الإمداد:	10000 لفة / شهر

معلومات تفاصيل

وصف المنتج

معلومات تفاصيل

مكان المنشأ:

الصين

خدمة الحياة:

10 سنوات

تكنولوجيا الانعكاس:

كامل مكعب المنشورية

نوع المادة اللاصقة:

لاصق حساس للضغط (PSA)

طريقة التصوير:

طباعة رقمية ، قطع إلكترونية ، طباعة على الشاشة

مواصفات Met:

ETA Class 3 ، ASTM D4956 Type XI

لون:

الأبيض/الأصفر/الأحمر/الأخضر/الأزرق/البرتقالي/البني/الجير الأخضر الأصفر

مقاس:

1.22*45.72m (4*150ft) أو مخصصة

التطبيقات الرئيسية:

الطرق السريعة والطرق السريعة/علامات الطرق السريعة

تفاصيل التغليف:

1 لفة/شهر

القدرة على العرض:

10000 لفة / شهر

إبراز:

Full-cube prismatic technology Diamond Grade Reflective Sheeting,ETA Class 3 and ASTM D4956 Type XI compliant DG Reflective Sheeting,Pressure-sensitive adhesive (PSA) Prismatic Reflective Sheeting

ETA Class 3 and ASTM D4956 Type XI compliant DG Reflective Sheeting

Pressure-sensitive adhesive (PSA) Prismatic Reflective Sheeting

وصف المنتج

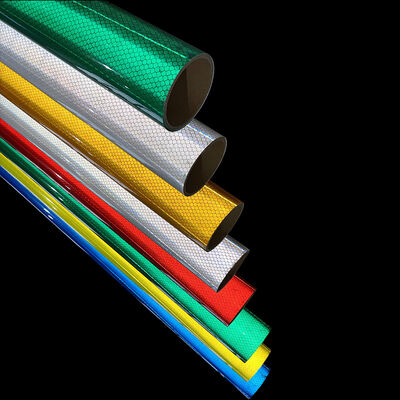

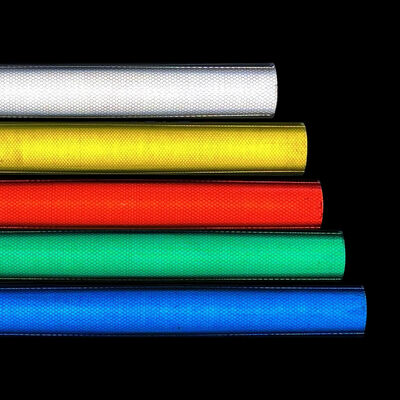

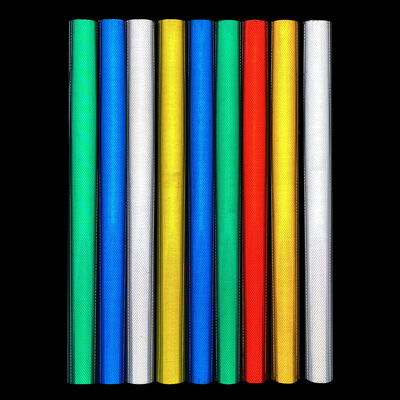

DG Diamond Grade Reflective Sheeting

Diamond Grade Reflective Sheeting is an advanced full-cube prismatic retroreflective material engineered for maximum nighttime and low-light visibility. Designed specifically for road safety applications, this high-performance sheeting meets stringent international specifications including ETA Class 3 and ASTM D4956 Type XI, delivering exceptional optical performance, long service life, and reliable adhesion.

Key Features

Full-cube prismatic technology: Micro-engineered prismatic cells concentrate and return light to the source for extremely high coefficient of retroreflection
Compliant with leading standards: Conforms to ETA Class 3 and ASTM D4956 Type XI for traffic signs and safety-critical installations
Pressure-sensitive adhesive (PSA): Ready-to-apply PSA backing simplifies installation with strong initial tack and durable long-term adhesion
Multiple imaging methods: Supports Digital Print, Electronic Cut, and Screen Print for diverse design requirements
Wide color range: Available in White, Yellow, Red, Green, Blue, Orange, Brown, and Lime Green Yellow
Standard and custom sizes: Standard roll size 1.22 x 45.72 m (4' x 150') or customizable dimensions
Operating temperature for application: Best applied at 18°C-28°C for optimal adhesive performance
Durable construction: Resists UV degradation, moisture ingress, and temperature cycling

Technical Specifications

Specification	Details
Reflective Structure	Full-cube prismatic microstructure
Adhesive Type	Pressure-sensitive adhesive (PSA) with protective liner
Imaging Compatibility	Digital Print, Electronic Cut, Screen Print
Standards	ETA Class 3, ASTM D4956 Type XI
Typical Roll Size	1.22 m x 45.72 m (custom sizes available)
Application Temperature	18°C-28°C
Available Colors	White, Yellow, Red, Green, Blue, Orange, Brown, Lime Green Yellow

Primary Applications

Highways and Freeways: Regulatory and directional signage
Expressways: Overhead signs and gantry-mounted panels
Work Zones: Temporary and permanent warning signage
Warning Signs: School zones, pedestrian crossings, and hazard indicators
Specialized Road Furniture: Delineators, bollards, and safety barriers

Road Safety Advantages

Diamond Grade Reflective Sheeting provides superior detectability by returning a larger portion of incident light back to drivers' eyes, making signs easier to spot and read at greater distances. The material maintains excellent performance at shallow and steep viewing angles and provides weather-resistant visibility in wet, foggy, or low-visibility conditions.

Installation and Maintenance

Surface Preparation

Ensure substrate is clean, dry, and free of oils, loose paint, or corrosion prior to application.

Application

Apply at recommended ambient temperatures (18°C-28°C) using peel-and-stick PSA application with pressure roll or squeegee to remove air bubbles.

Maintenance

Clean with mild detergent and water; avoid harsh solvents or abrasive cleaners. Inspect signs periodically for edge lifting, delamination, or surface wear.

Quality Assurance

Manufactured under strict quality control systems to ensure consistent prism geometry, adhesive performance, and color uniformity. Batch testing available for retroreflectivity, adhesion, and accelerated weathering.

Ordering Information

Standard specification: 1.22 m x 45.72 m rolls. Other sizes can be customized. Contact sales for current availability and lead times. Sample swatches and certified test reports available on request.

About LU Reflective

Since 1998, Anhui Lu Zheng Tong New Material Technology Co., Ltd. has specialized in R&D, production, sales and service of reflective materials and safety products. LU brand products include reflective sheeting, vehicle reflective tapes, marine SOLAS reflective tapes, photoluminescent films, and reflective traffic signs. Certified by ISO 90001, 3C, E-mark ECE104, DOT-C2, and Intertek, with over 20+ patents.

Technical Support & Services

We provide full technical support including installation guidance, application recommendations, performance consultation, product testing, customization support, and professional training.

Packing & Shipping

Packaging

Each roll is packed in a sturdy cardboard carton with protective plastic wrapping to prevent scratches and transit damage. Custom packaging services available.

Shipping

Shipped via ground transportation with tracking information provided after dispatch. Shipping cost calculated based on destination and weight.
